Descriere
Freze tip deget pentru caneluri cu coada 6,8,12mm

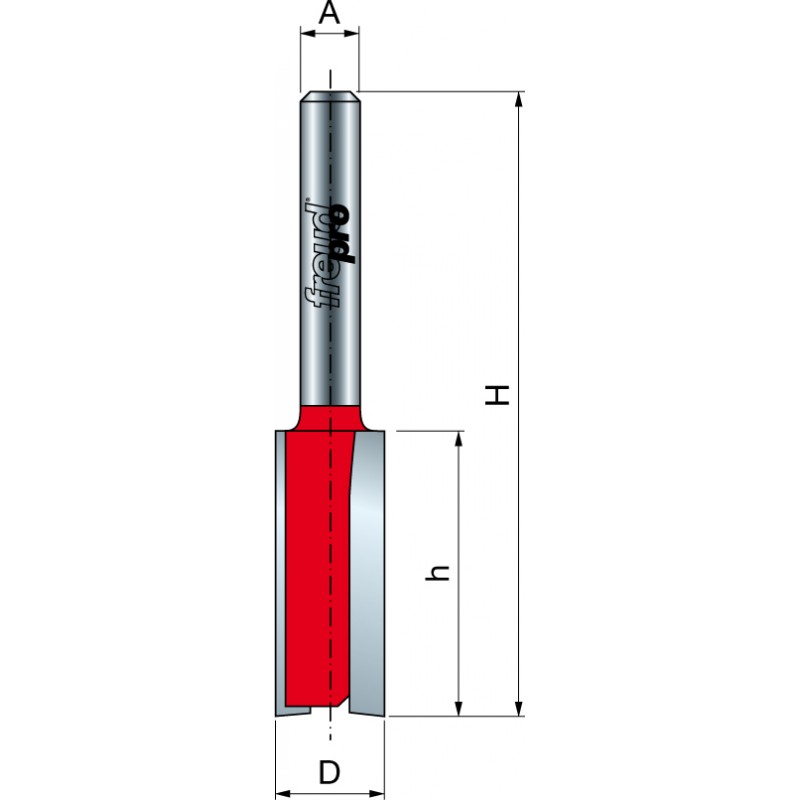

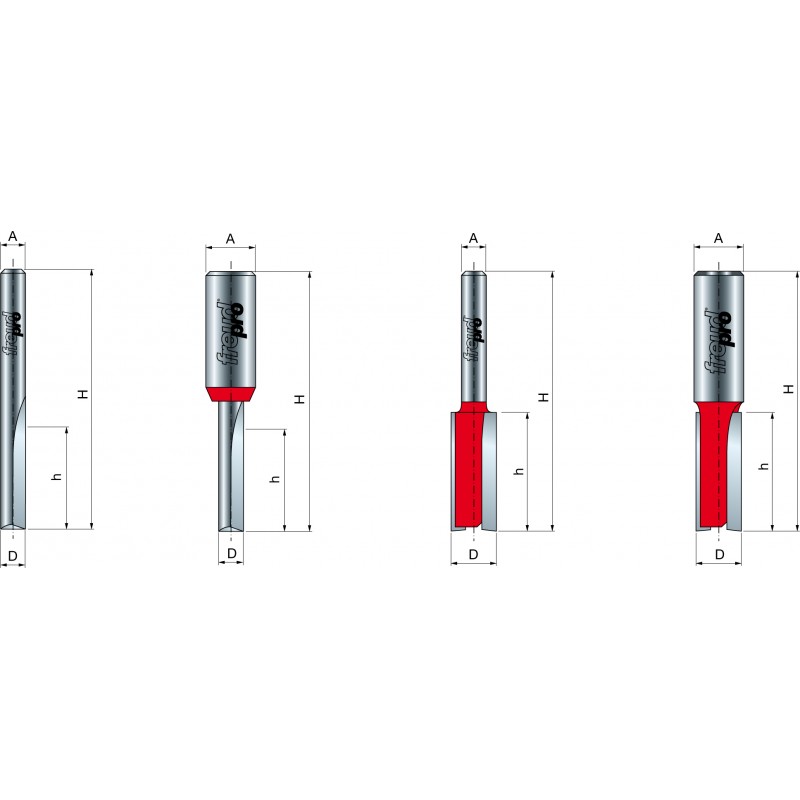

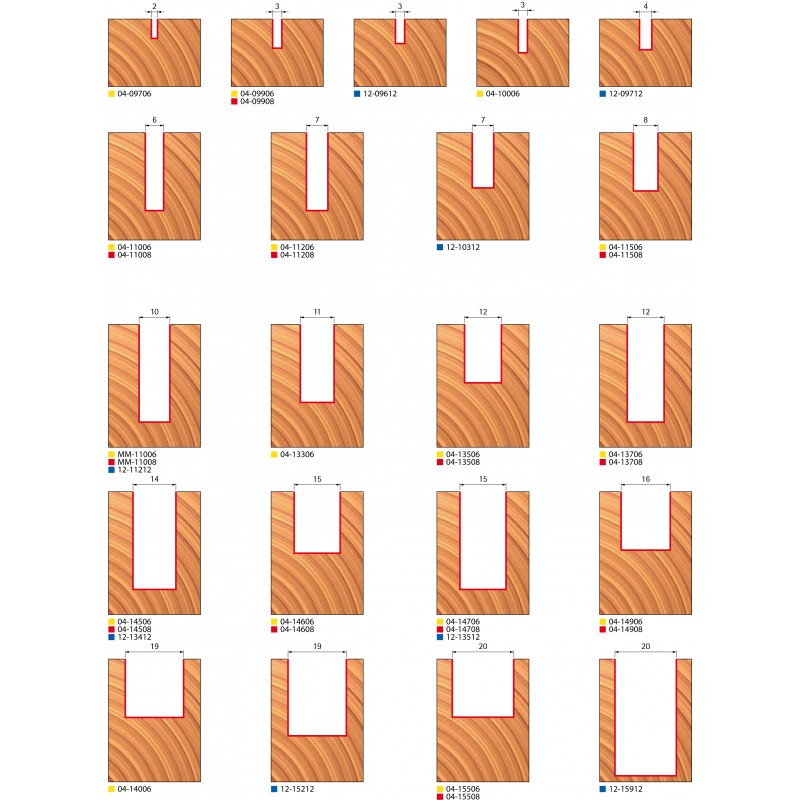

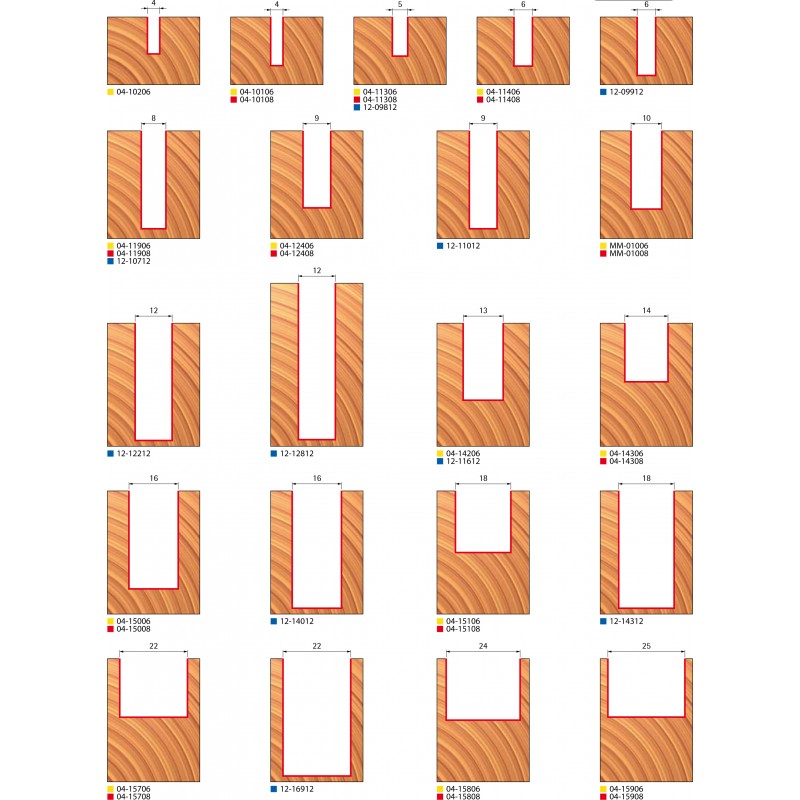

| D | h | H | COD-6 | COD-8 | COD-12 |
| 2 | 6.3 | 44.5 | 04-09706 | ||
| 3 | 9.5 | 44.5 | 04-09906 | 04-09908 | |
| 3 | 8 | 50 | 12-09612 | ||
| 3 | 11 | 50.8 | 04-10006 | ||
| 4 | 10 | 50 | 12-09712 | ||
| 4 | 12 | 50.8 | 04-10206 | ||
| 4 | 15.8 | 44.5 | 04-10106 | 04-10108 | |
| 5 | 12.7 | 50.8 | 04-11306 | 04-11308 | |
| 5 | 12.7 | 57 | 12-09812 | ||
| 6 | 16 | 50.8 | 04-11406 | 04-11408 | |
| 6 | 19 | 64 | 12-09912 | ||
| 6 | 25.4 | 76.2 | 04-11006 | 04-11008 | |
| 7 | 25.4 | 63.5 | 04-11206 | 04-11208 | |
| 7 | 18 | 67 | 12-10312 | ||
| 8 | 19 | 64 | 04-11506 | 04-11508 | |
| 8 | 31.8 | 70 | 04-11906 | 04-11908 | |
| 8 | 31.8 | 76 | 12-10712 | ||
| 9 | 25 | 63 | 04-12406 | 04-12408 | |
| 9 | 31.8 | 76 | 12-11012 | ||
| 10 | 25.4 | 62.4 | MM-01006 | MM-01008 | |
| 10 | 31.8 | 69 | MM-11006 | MM-11008 | |
| 10 | 31.8 | 76 | 12-11212 | ||
| 11 | 25.4 | 62 | 04-13306 | ||
| 12 | 19 | 56 | 04-13506 | 04-13508 | |
| 12 | 31.8 | 68 | 04-13706 | 04-13708 | |
| 12 | 38.1 | 80 | 12-12212 | ||
| 12 | 50.8 | 100 | 12-12812 | ||
| 19 | 19 | 54 | 04-14006 | ||
| 13 | 25 | 63 | 04-14206 | ||
| 13 | 25 | 67 | 12-11612 | ||
| 14 | 19 | 56 | 04-14306 | 04-14308 | |
| 14 | 31.8 | 68.2 | 04-14506 | 04-14508 | |
| 14 | 31.8 | 73 | 12-13412 | ||
| 15 | 20 | 57.2 | 04-14606 | 04-14608 | |
| 15 | 31.8 | 68.2 | 04-14706 | 04-14708 | |
| 15 | 31.8 | 69.8 | 12-13512 | ||
| 16 | 19 | 51 | 04-14906 | 04-14908 | |
| 16 | 31.8 | 66 | 04-15006 | 04-15008 | |
| 16 | 38.1 | 76.1 | 12-14012 | ||
| 18 | 20 | 52 | 04-15106 | 04-15108 | |
| 18 | 38.1 | 80 | 12-14312 | ||
| 19 | 19 | 54 | 04-14006 | ||
| 19 | 25 | 63 | 12-15212 | ||
| 20 | 19 | 56 | 04-15506 | 04-15508 | |
| 20 | 38.1 | 80 | 12-15912 | ||
| 22 | 19 | 51 | 04-15706 | 04-15708 | |
| 22 | 38.1 | 80 | 12-16912 | ||
| 24 | 20 | 52 | 04-15806 | 04-15808 | |
| 25 | 19 | 56 | 04-15906 | 04-15908 |
