Descriere
– Pentru taierea de profilate si tubulare cu grosimea de pana la 5 mm
– Se consiliaza utilizarea cu panza peste material
– Pentru ferastraie circulare simple sau duble cu blocaj manual sau mecanic al piesei

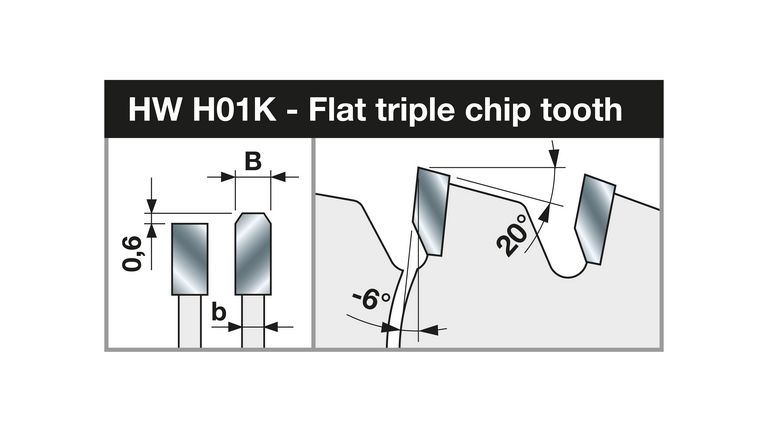

– Dinte drept/trapez cu unghi de degajare negativ
– Pentru aluminiu si metale neferoase
| Gauri de prindere | Cod | D | B | b | d | Z | |
| LU5C | o100 | 180 | 2.8 | 2.2 | 20 | 42 | |
| LU5C | o200 | 180 | 2.8 | 2.2 | 30 | 42 | |
| LU5C | o300 | 200 | 2.8 | 2.2 | 30 | 48 | |
| LU5C | o400 | 250 | 3.5 | 3.0 | 30 | 54 | |
| 2/11/63 | LU5C | o500 | 250 | 3.5 | 3.0 | 32 | 54 |
| LU5C | o600 | 275 | 3.5 | 3.0 | 40 | 60 | |
| 2/7/42+2/9/46,9+2/10/60 | LU5C | o700 | 300 | 3.5 | 3.0 | 30 | 72 |
| 2/11/63 | LU5C | o800 | 300 | 3.5 | 3.0 | 32 | 72 |
| 2/9/55+4/12/64 | LU5C | o900 | 300 | 3.5 | 3.0 | 40 | 72 |
| LU5C | 1000 | 330 | 3.5 | 3.0 | 30 | 80 | |
| 2/11/63 | LU5C | 1100 | 330 | 3.5 | 3.0 | 32 | 80 |
| 2/7/42+2/9/46,9+2/10/60 | LU5C | 1200 | 350 | 3.5 | 3.0 | 30 | 84 |
| 2/11/63 | LU5C | 1300 | 350 | 3.5 | 3.0 | 32 | 84 |
| 2/9/55+4/12/64 | LU5C | 1400 | 350 | 3.5 | 3.0 | 40 | 84 |
| LU5C | 1500 | 370 | 3.5 | 3.0 | 30 | 90 | |
| 4/15/80 | LU5C | 1600 | 370 | 3.5 | 3.0 | 50 | 90 |
| 2/11/63 | LU5C | 1700 | 380 | 3.5 | 3.0 | 32 | 96 |
| 2/11/70 | LU5C | 1800 | 400 | 3.5 | 3.0 | 30 | 96 |
| 2/11/63 | LU5C | 1900 | 400 | 3.5 | 3.0 | 32 | 96 |
| 2/15/80+2/12/64 | LU5C | 2000 | 400 | 3.5 | 3.0 | 40 | 96 |
| 4/15/80 | LU5C | 2100 | 400 | 3.5 | 3.0 | 50 | 96 |
| LU5C | 2200 | 420 | 4.0 | 3.2 | 30 | 96 | |
| LU5C | 2300 | 420 | 4.0 | 3.2 | 40 | 96 | |
| LU5C | 2400 | 450 | 4.0 | 3.2 | 30 | 108 | |
| 2/11/63 | LU5C | 2500 | 450 | 4.0 | 3.2 | 32 | 108 |
| 2/15/80+2/12/64 | LU5C | 2600 | 450 | 4.0 | 3.2 | 40 | 108 |
| 4/15/80 | LU5C | 2700 | 450 | 4.0 | 3.2 | 50 | 108 |
| LU5C | 2800 | 500 | 4.0 | 3.2 | 30 | 120 | |
| 2/11/63 | LU5C | 2900 | 500 | 4.0 | 3.2 | 32 | 120 |
| 4/15/80 | LU5C | 3000 | 500 | 4.0 | 3.2 | 50 | 120 |
