Descriere
– Pentru taierea de laminate pline cu grosimea de la 2 la 10 mm
– Pt. ferastraie circulare simple sau duble cu blocajul manual sau mecanic al pieseial piesei

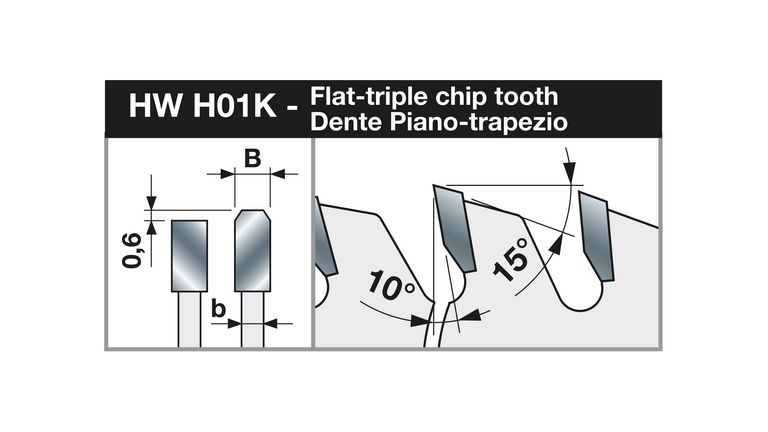

– Dinte drept/trapez cu unghi de degajare pozitiv
– Pentru aluminiu si metale neferoase
| Gauri de prindere | Cod | D | B | b | d | Z | |
| LU5A | o100 | 200 | 2.8 | 2.2 | 30 | 54 | |
| 2/7/42+2/9/46,9+2/10/60 | LU5A | o200 | 250 | 3.5 | 3.0 | 30 | 60 |
| 2/11/63 | LU5A | o300 | 250 | 3.5 | 3.0 | 32 | 60 |
| 2/9/55+4/12/64 | LU5A | o400 | 275 | 3.5 | 3.0 | 40 | 68 |
| 2/7/42+2/9/46,9+2/10/60 | LU5A | o500 | 300 | 3.5 | 3.0 | 30 | 72 |
| 2/11/63 | LU5A | o600 | 300 | 3.5 | 3.0 | 32 | 72 |
| 2/7/42+2/9/46,9+2/10/60 | LU5A | o800 | 330 | 3.5 | 3.0 | 30 | 84 |
| 2/11/63 | LU5A | o900 | 330 | 3.5 | 3.0 | 32 | 84 |
| 2/7/42+2/9/46,9+2/10/60 | LU5A | 1000 | 350 | 3.5 | 3.0 | 30 | 84 |
| 2/11/63 | LU5A | 1100 | 350 | 3.5 | 3.0 | 32 | 84 |
| 2/9/55+4/12/64 | LU5A | 1200 | 350 | 3.5 | 3.0 | 40 | 84 |
| LU5A | 1300 | 370 | 3.5 | 3.0 | 30 | 90 | |
| 4/15/80 | LU5A | 1400 | 370 | 3.5 | 3.0 | 50 | 90 |
| 2/11/63 | LU5A | 1600 | 400 | 3.5 | 3.0 | 30 | 96 |
| 2/11/63 | LU5A | 1700 | 400 | 3.5 | 3.0 | 32 | 96 |
| 2/12/64+2/15/80 | LU5A | 1800 | 400 | 3.5 | 3.0 | 40 | 96 |
| 4/15/80 | LU5A | 1900 | 400 | 3.5 | 3.0 | 50 | 96 |
| 2/11/70 | LU5A | 2000 | 420 | 3.5 | 3.0 | 30 | 96 |
| LU5A | 2100 | 450 | 4.0 | 3.2 | 30 | 108 | |
| 2/11/63 | LU5A | 2200 | 450 | 4.0 | 3.2 | 32 | 108 |
| 2/12/64+2/15/80 | LU5A | 2300 | 450 | 4.0 | 3.2 | 40 | 108 |
| 4/15/80 | LU5A | 2400 | 450 | 4.0 | 3.2 | 50 | 108 |
| 2/10,5/70 | LU5A | 2500 | 500 | 4.0 | 3.2 | 30 | 120 |
| 2/11/63 | LU5A | 2600 | 500 | 4.0 | 3.2 | 32 | 120 |
| 4/15/80 | LU5A | 2700 | 500 | 4.0 | 3.2 | 50 | 120 |
| 2/10,5/70 | LU5A | 2800 | 530 | 4.2 | 3.5 | 30 | 126 |
| 2/10,5/70 | LU5A | 2900 | 550 | 4.2 | 3.5 | 30 | 132 |
